Tortoise Type LED Luminaire for Explosive Atmospheres (Zone 2 or 21 and 22)

Line Perequê

CLY-T(D)

Discover the Tortoise Type LED Luminaire from the Perequê Line CLY-T(D), ideal for explosive atmospheres, offering high luminous efficiency and robustness in classified zones.

2893lm (+10%)

IP66
5 years warranty

Technical description

Technical characteristics

Power23W (±10%)
Lumens3220 lm (±10%)
Working Voltage220-240 VAC / 100-277 VAC
Operation Frequency50/60Hz
Standard Color Temperature5000K (±275K)
Beam Opening Angles115°
Warranty3 to 5 Years Warranty
Protection GradeIP66
Impact GradeIK08

About the lamp

The Tortoise Type LED Luminaire from the Perequê Line, model CLY-T(D), is specifically designed for installations in potentially explosive atmospheres, replacing traditional tortoise-shell wall lights with a modern and efficient solution. This model is ideal for use in classified zones 2, 21, or 22, including refineries, industries, power plants, platforms, and other areas requiring explosion-protected equipment.

Available in power outputs of 23W, 32W, and 43W, this luminaire offers efficient lighting with luminous efficacies ranging from 131 lm/W to 143 lm/W. The body of the luminaire is made from cast aluminum, offering high mechanical and corrosion resistance, ensuring durability and safety in harsh environments.

The compact and functional design of the CLY-T(D) facilitates installation in various configurations, while the tempered glass diffuser (with a polycarbonate option) provides optimized light distribution with a beam angle of 115°. Additionally, the luminaire is equipped with IP66 protection, ensuring complete protection against dust and water ingress, and has an impact grade of IK08.

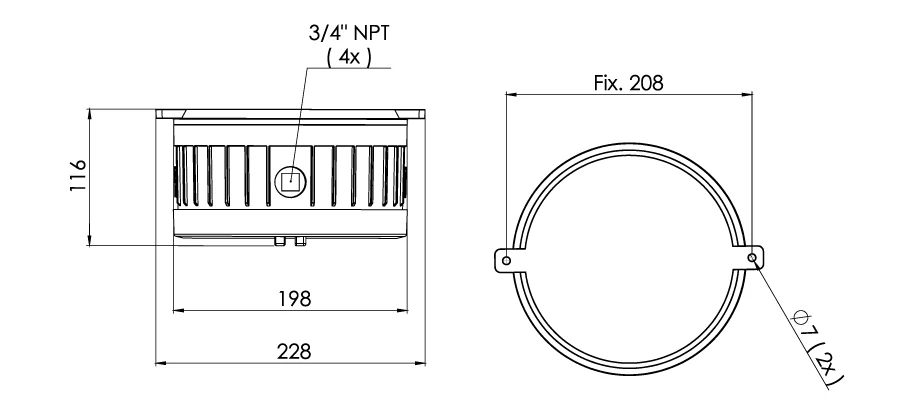

Technical drawing
