Explosion-Proof LED Floodlight (Zone 2 or 21 and 22)

Line Itararé


Designed for areas classified in Zones 2, 21 and 22, with the Ex nC nR type of protection, without the need for restricted breathing testing in the field, at the time of installation.

2893lm (+10%)

3 years warranty

Technical description

Technical characteristics

Power30W (±10%)
Lumens4000 lm (±10%)
Working Voltage220-240 VAC / 100-277 VAC / 100-280 VDC
Operation Frequency50/60Hz
Standard Color Temperature5000K / 3000K (±275K)
Beam Opening Angles90°
Warranty3 to 5 Years Warranty
Protection GradeIP67
Impact GradeIK08

About the lamp

The Itararé Line CLG-EX(F) Explosion-Proof LED Floodlight is specifically designed for environments at risk of explosions, classified in Zones 2, 21, and 22. This floodlight incorporates Ex nC nR protection technology, eliminating the need for restricted breathing tests during installation. With an IP67 rating, it ensures complete dust tightness and protection against temporary water immersion, along with an IK08 impact protection rating.

Available in a range of power outputs from 30W to 400W, the explosion-proof LED floodlight is ideal for a wide array of industrial applications, including refineries, laboratories, and docks. Featuring a color rendering index greater than 70 and available in color temperatures of 3000K or 5000K, this floodlight offers flexibility and efficiency in lighting. Beam angles of 30°, 60°, and 90° allow for precise light distribution, suitable for diverse lighting needs.

This LED floodlight not only ensures safety and durability but also promotes energy efficiency and optimal brightness in extreme conditions.

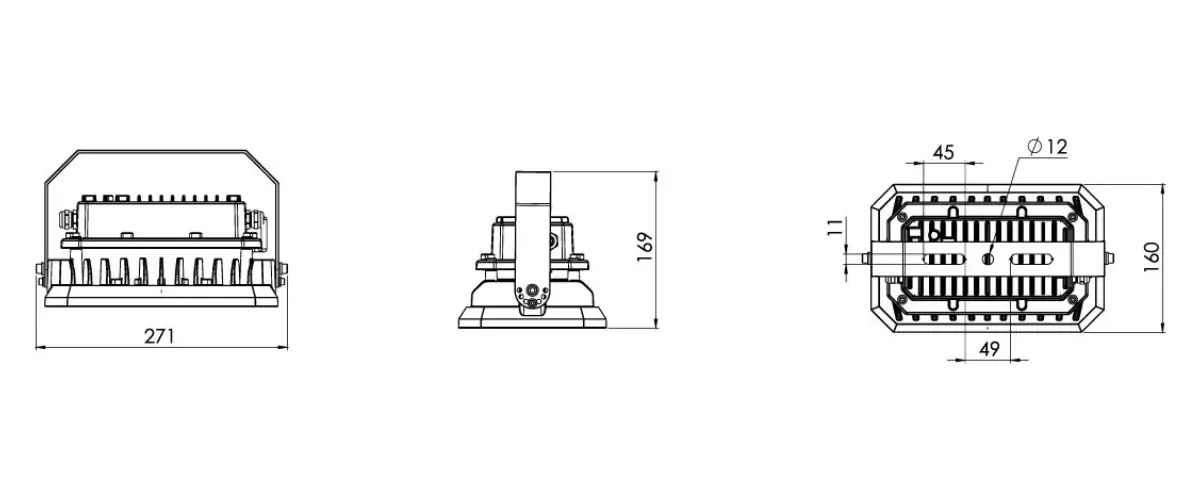

Technical drawing
